Proof of Concept Demonstration: Adjustable Tilt Mounts for Bosch Panoramic Cameras

Matt Golueke December 3, 2020 16:48 PM

MidChes vs. Bosch Mounts for 180-360 6000-7000 banner image-1

Our new adjustable tilt mounts for Bosch FLEXIDOME panoramic 5000, 6000, and 7000 series cameras are ideal for adjusting and optimizing the field of view to:

  • simple, forgiving installation solutionBMT-70WAT GIF
  • flexible option for specifiers, installers, and system owners who won't know the exact field of view desired until installation is complete
  • reduce or increase ceiling, horizon, or sky in the field of view
  • Adjustable Tilt BMT-70T45 vs Bosch Surface Mount 180-360° - 1-1increase or decrease ground or wall view below the camera
  • optimize field of view in a stairwell up or down to eliminate multiple cameras and ensure the proper positioning
  • optimize field of view in parking garage structures
  • optimize field of view in pole mount applications for traffic and parking areas



Proof of Concept Demonstrations

Adjustable tilt demo board in window 2

Steve, Tom, and a few others from our team reviewed the new MidChes adjustable tilt mount configuration options and performed a few proof of concept demonstrations. Below you will find:

  • Adjustable tilt mount configurations overview video presented by Steve and Tom
  • Surface mount comparison
    • Field of view demonstration video comparing the Bosch fixed-position surface mount box to the MidChes BMT-70T45 adjustable tilt mount
  • Pendant wall/ceiling arm comparison
    • Field of view demonstration video comparing the Bosch fixed-position pendant wall arm to the MidChes BMT-70WAT (BMT-70SPA) adjustable tilt wall/ceiling mount
  • Field of View Optimization Images
    • Downloadable PNG images showing side-by-side comparisons of footage from various mounts as well as comparing the use of a 180⁰ versus 360⁰ imager
    • Horizon and sky reduction with tilt depicted clearly
    • Ground and wall viewing improved with tilt directly below the camera as well as far left and far right
  • Mount Adjustment Demonstration Videos
    • Each mount is articulated to show complete range of tilt and pan positions



Adjustable Tilt Mount Options Overview:



BMT-70T45 Surface Mount Proof of Concept:

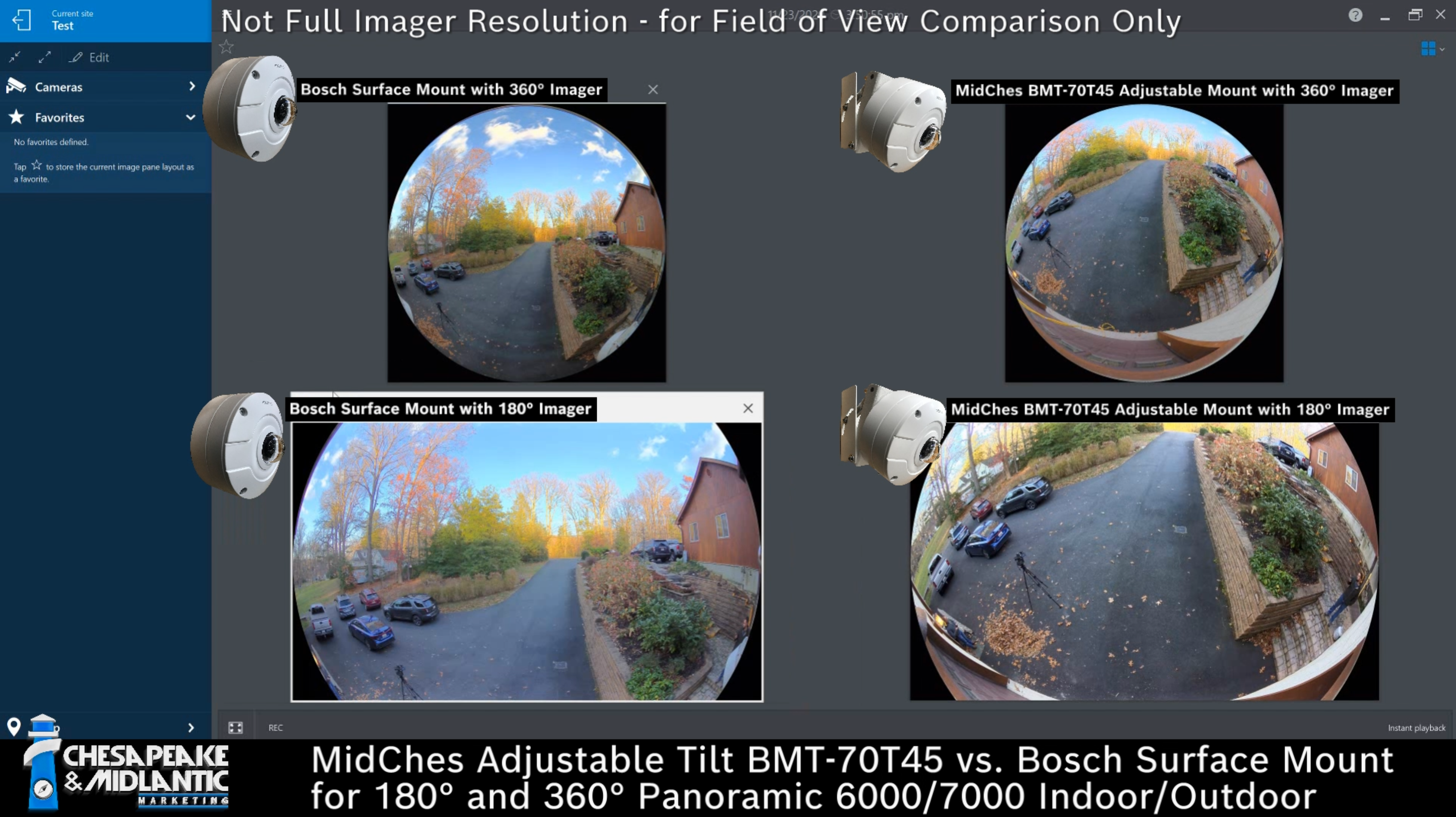

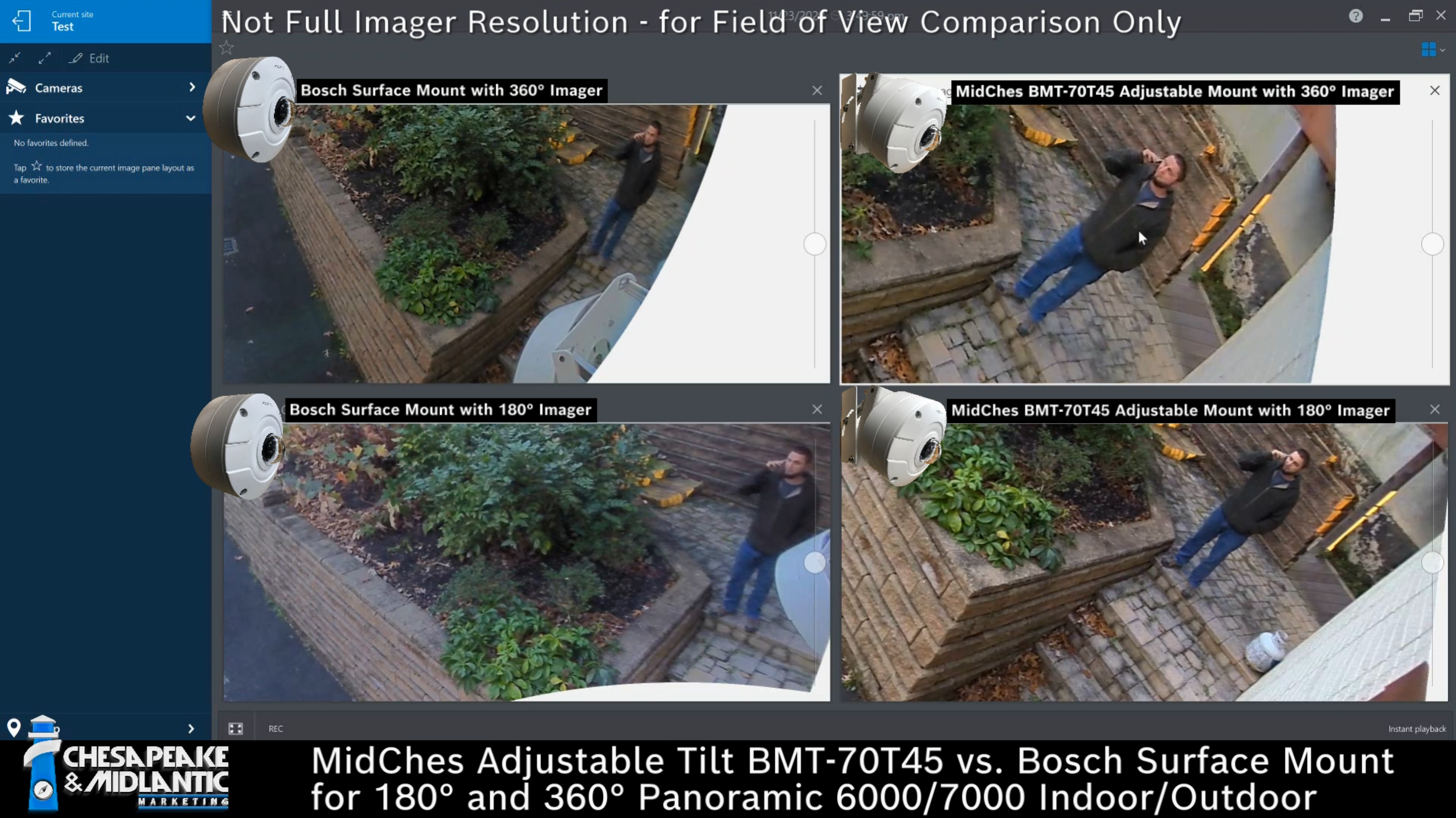

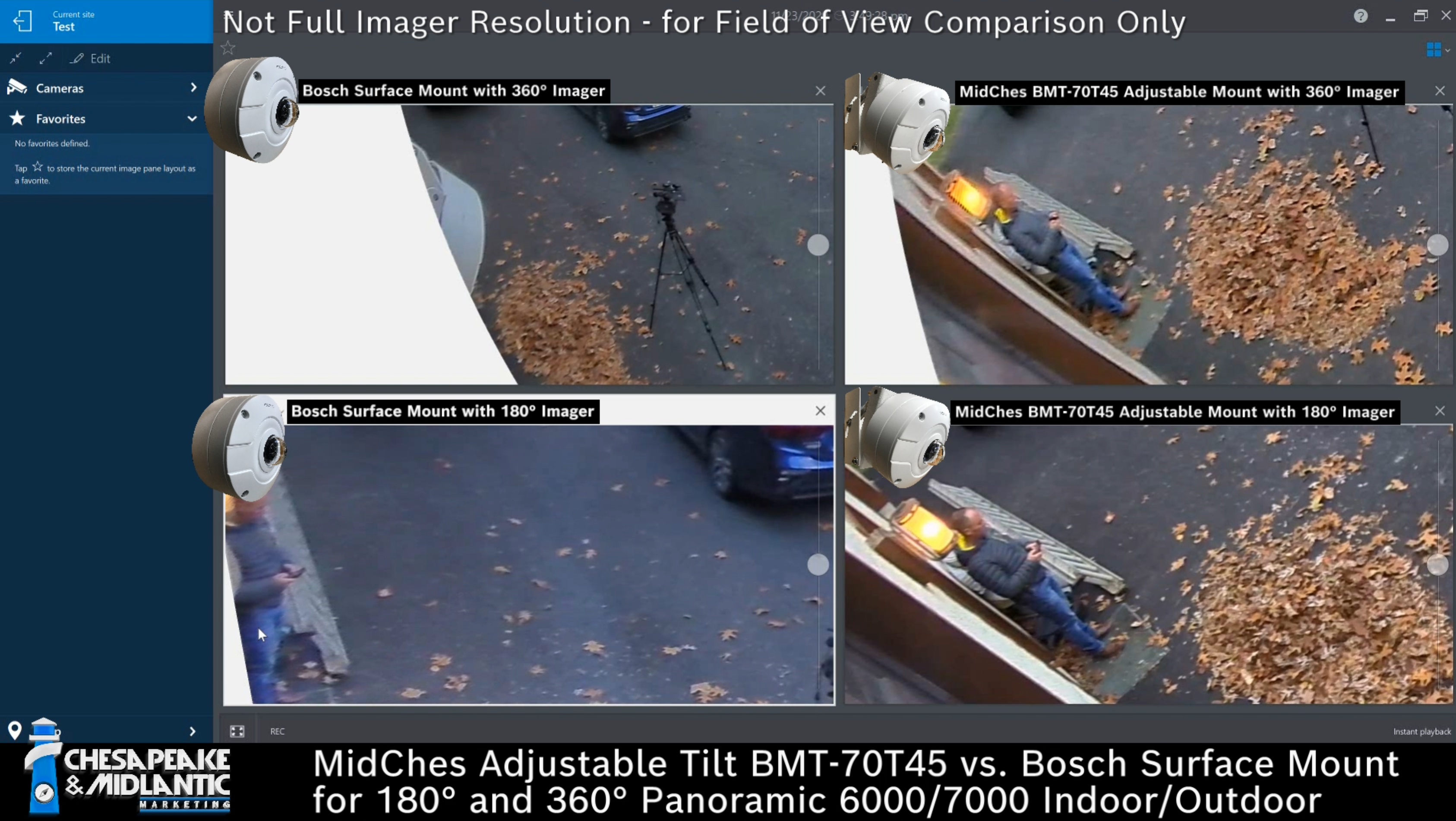

       Adjustable Tilt BMT-70T45 vs Bosch Surface Mount 180-360° - 2  Adjustable Tilt BMT-70T45 vs Bosch Surface Mount 180-360° - 1-1   Adjustable Tilt BMT-70T45 vs Bosch Surface Mount 180-360° - 3

       MidChes vs. Bosch Mounts for 180-360 6000-7000 banner image-1



BMT-70WAT (BMT-70SPA) Pendant Wall/Ceiling Arm Proof of Concept:

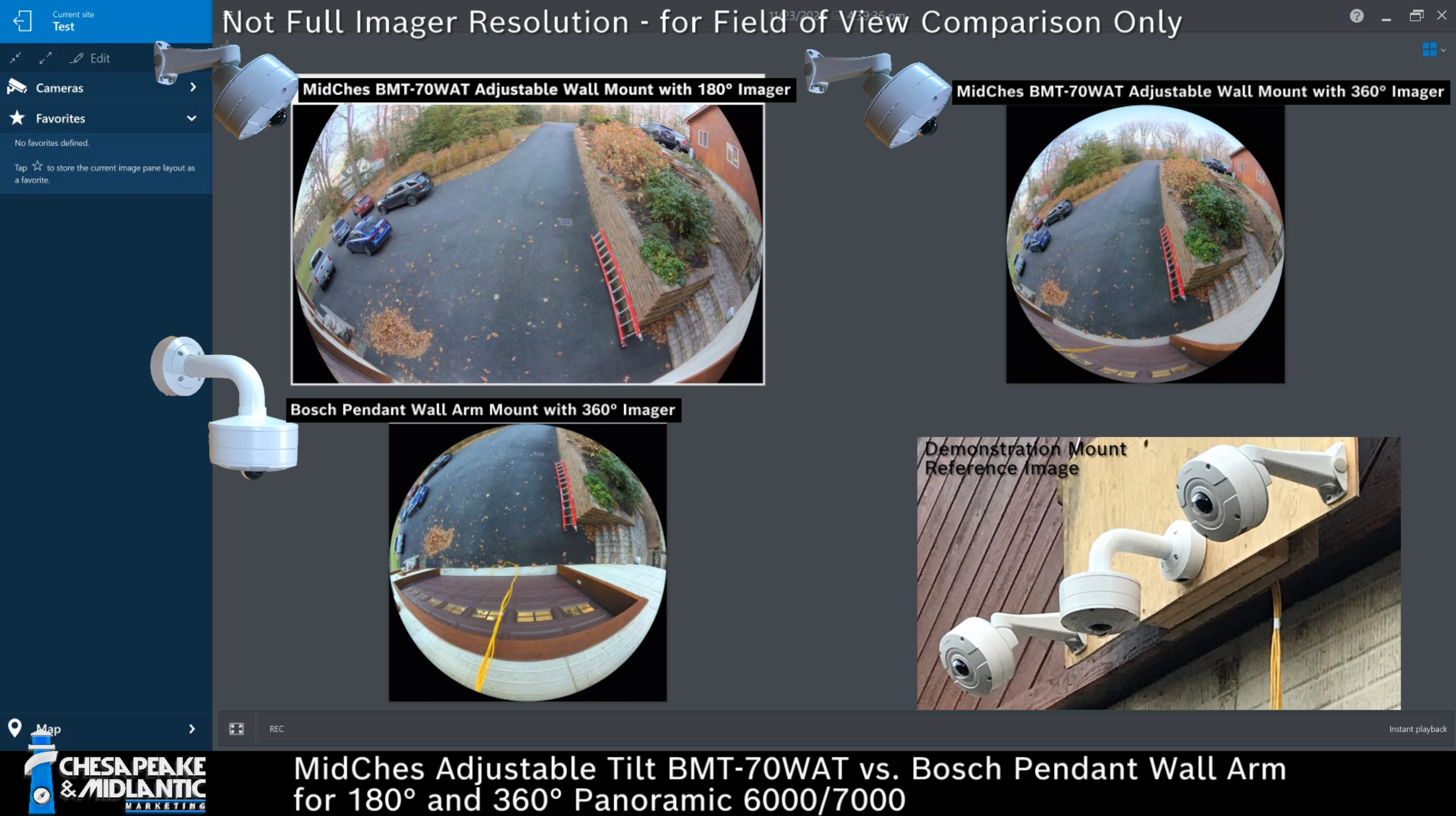

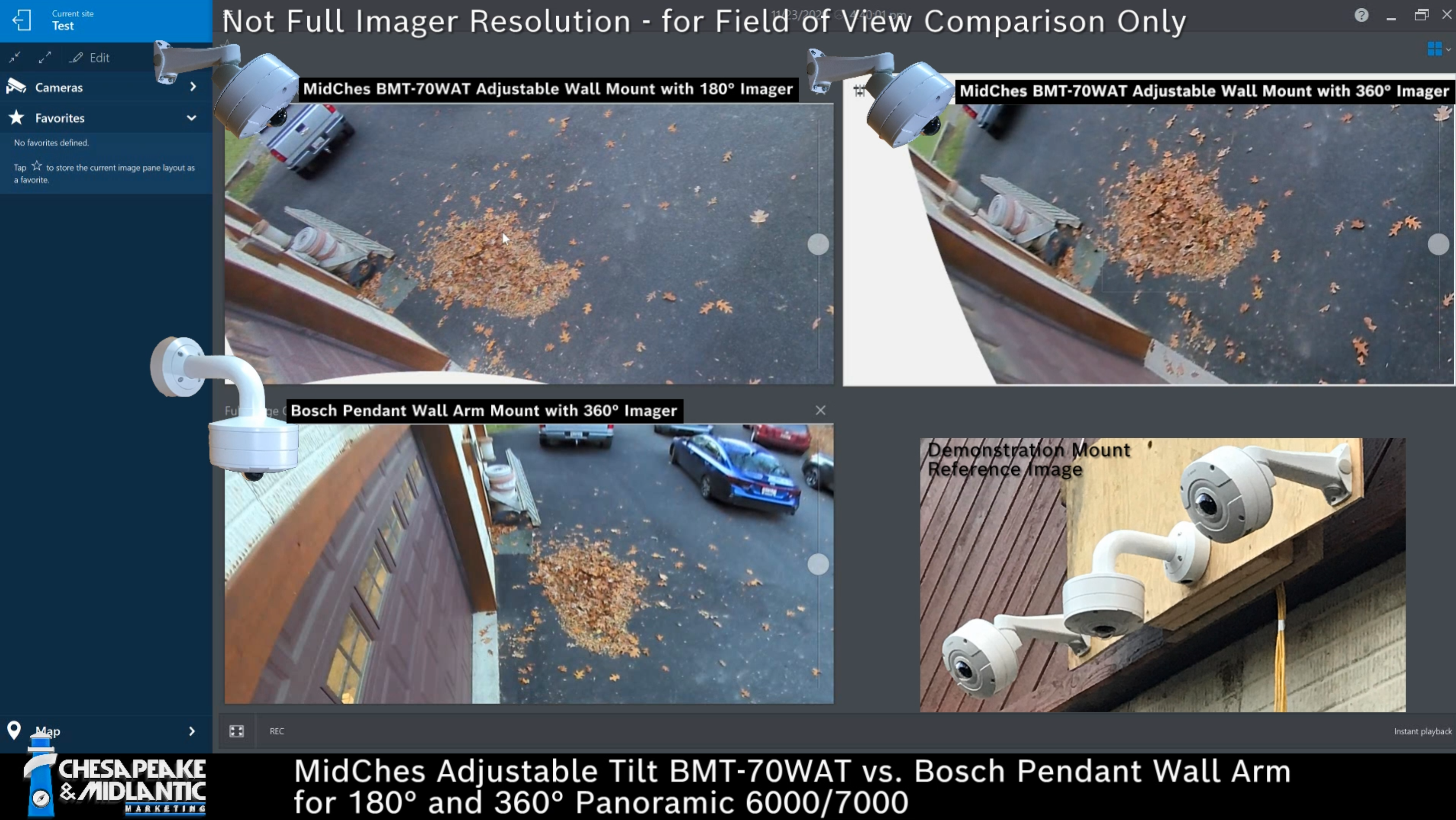

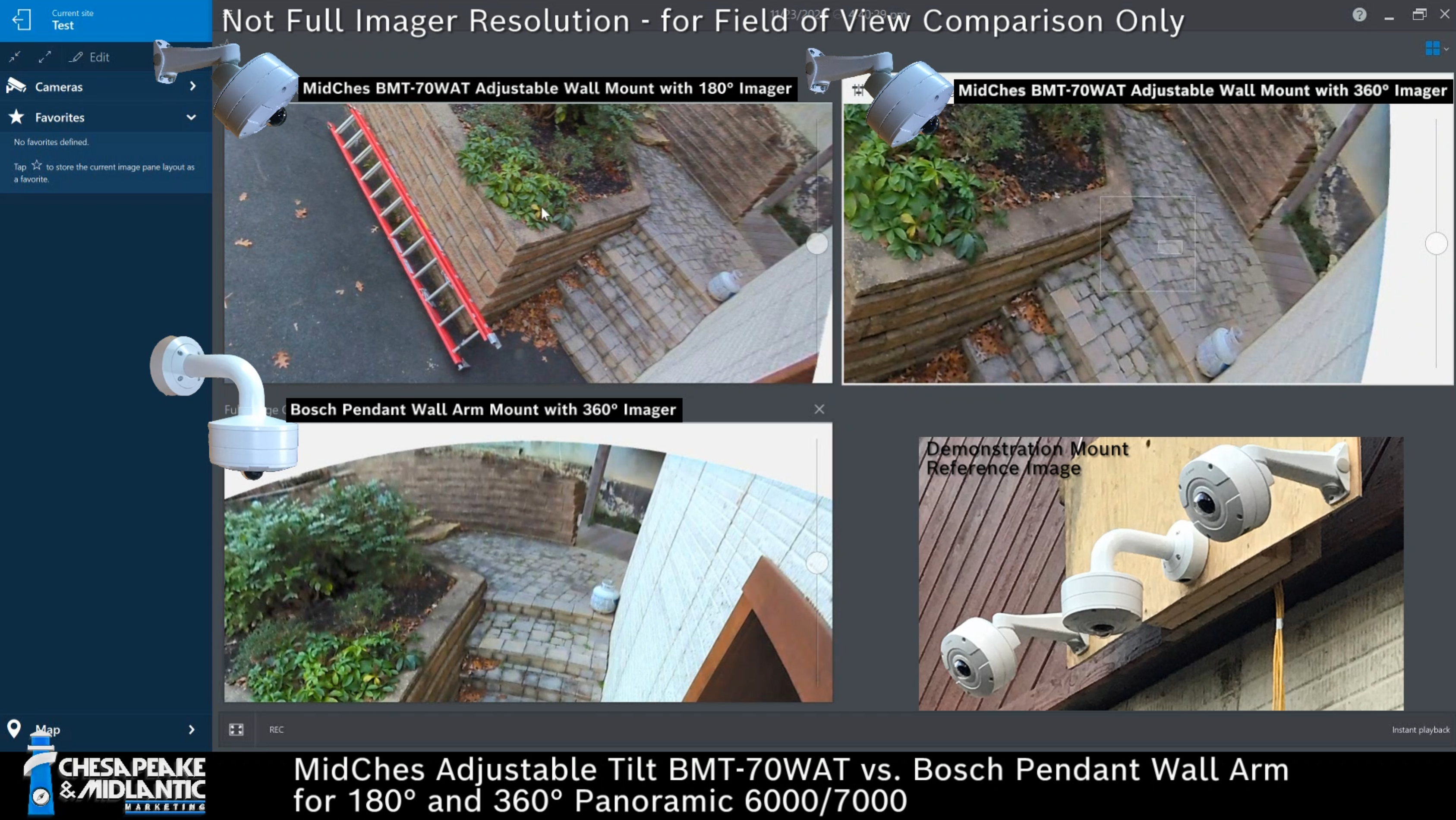

             BMT-70WAT vs. Bosch Pendant Wall Arm for 180-360 6000-7000 - 2   BMT-70WAT vs. Bosch Pendant Wall Arm for 180-360 6000-7000 - 3

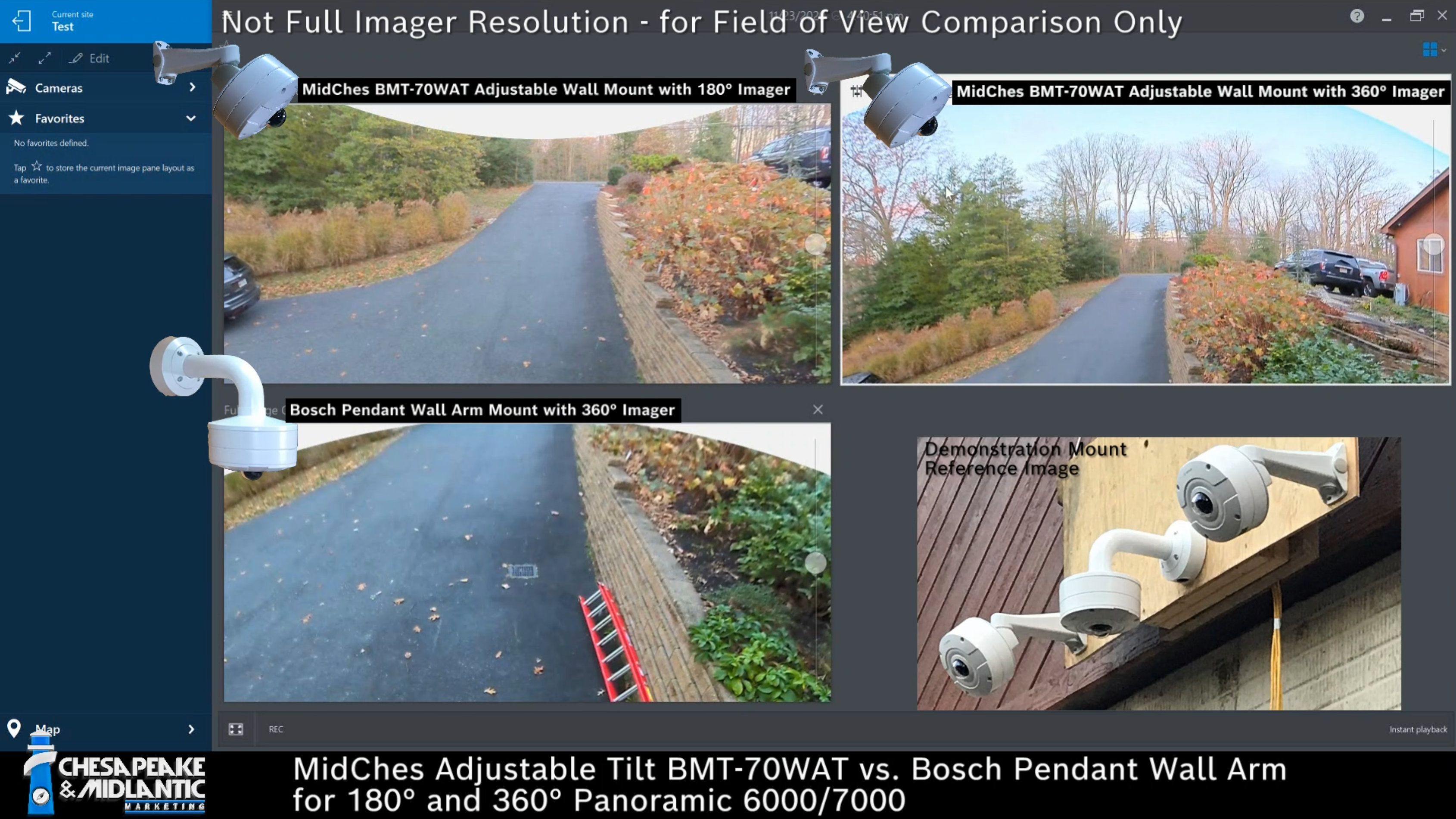

             BMT-70WAT vs. Bosch Pendant Wall Arm for 180-360 6000-7000 - 4   BMT-70WAT vs. Bosch Pendant Wall Arm for 180-360 6000-7000 - 1

             MidChes vs. Bosch Mounts for 180-360 6000-7000 banner image-1






BMT-70T45 with Camera Transparent - LeftBMT-70WAT With Camera - Transparent - Right  BMT-70SPA With Camera - Transparent  BMT-70WAT With Camera from Ceiling - Transparent Mounting Accessories for Bosch 5000, 6000, 7000 Series Indoor and Outdoor Panoramic Cameras - magazine

Shop adjustable tilt mounts here >> Buy_Now_Button-1

Adjustable tilt wall mounts range from $80 to $95






FLEXIDOME 6000 7000 outdoor panoramic

Bosch recently released the outdoor version of the FLEXIDOME IP panoramic 6000 and 7000 cameras and MidChes has released new adjustable tilt mounts in order to optimize the field of view for 180⁰ and 360⁰ cameras.

  • 12MP / 30 fps sensor for fine details with smooth motion
  • 360⁰ or 180⁰ field of view - model specific
  • Edge or client-side dewarping for easy integration
  • Essential or Intelligent Video Analytics on full panoramic overview - model specific
  • Discreet and aesthetic, low-profile design
  • Easy twist-click installation

Flat versus 45-degree panoramic mount image 6-1Steve Pennington and Tom Fontana discuss the new outdoor panoramic camera features as well as the benefits of using an adjustable tilt wall mount in certain situations to improve field of view, reducing horizon and improving foreground surveillance when using a Bosch FLEXIDOME IP panoramic 5000, 6000, or 7000 series camera. Click on the image to the right to see the difference between a flat wall mount and a 45⁰ angle mount. Shop adjustable tilt mounts here >>



In this video, we discuss ideal applications for 180⁰ and 360⁰ cameras and Steve and Tom share their first-hand experiences from the field.



Adjustable Tilt Mounts for FLEXIDOME IP panoramic 5000 / 6000 / 7000 cameras >>

BMT-70WAT transparent BMT-70T45    Mounting Accessories for Bosch 5000, 6000, 7000 Series Indoor and Outdoor Panoramic Cameras - magazine

Shop adjustable tilt mounts here >> Buy_Now_Button-1

Adjustable tilt wall mounts range from $80 to $95




FLEXIDOME IP panoramic 5000/6000/7000 technical information >>

FLEXIDOME 6000 7000 outdoor panoramicpano-7000_image_2 flex50007000

Bosch FLEXIDOME IP panoramic 6000 and 7000 series cameras range from $1200 to $1800 (MSRP)






Applications for Panoramic Cameras >>

180 vs 360 panoramic video thumbnail




Contact us for solution design assistance >>
