Securing a facility’s perimeter is one of the most critical responsibilities of a security program. Whether the site is a stadium, healthcare facility, distribution center, or government installation, the perimeter is the first and often most vulnerable point of potential intrusion. While much attention in recent years has shifted toward advanced electronic detection and video analytics, it’s important not to overlook the foundational role that physical perimeter security plays in preventing unauthorized access, vehicular threats, and more subtle breaches.

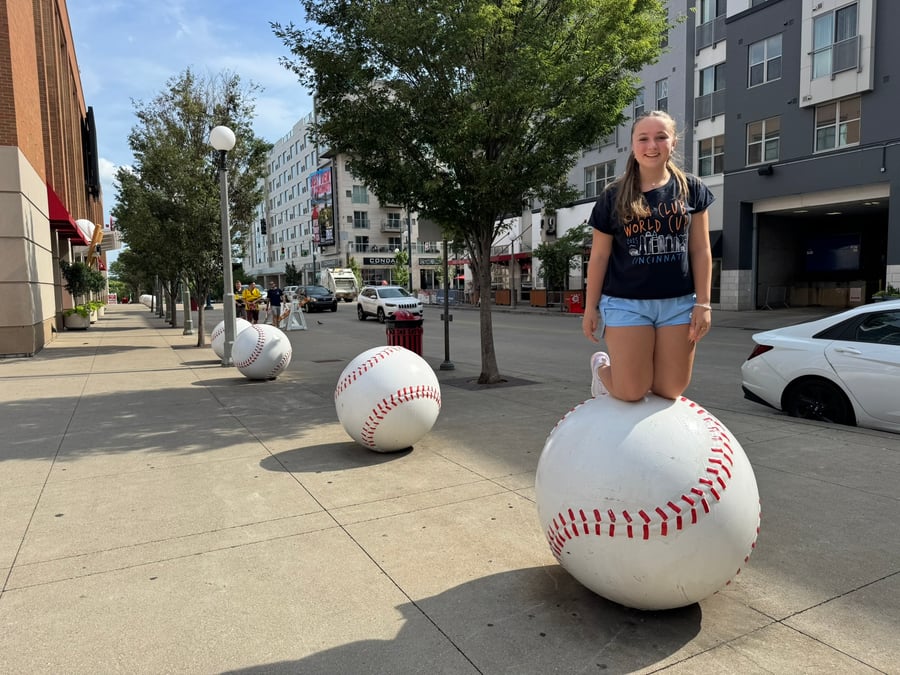

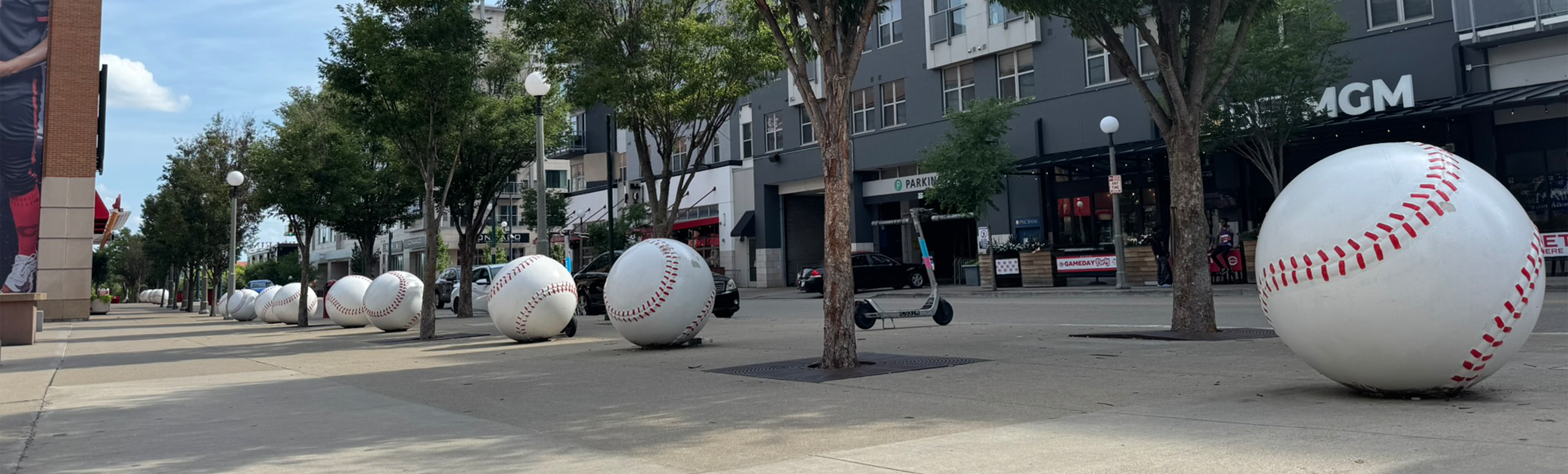

A recent visit to the Cincinnati Reds’ stadium offers a great case study. Despite being a venue open to the public during events, the facility employs smart use of physical barriers to prevent vehicle intrusion into pedestrian spaces. Permanent and retractable bollards, reinforced landscaping features, and intentional traffic design make it clear: even in a place where crowds are encouraged, safety isn’t compromised.

Below, we break down how facilities can take a layered, application-driven approach to perimeter protection—starting with physical measures and building up to Perimeter Intrusion Detection Systems (PIDS) that alert personnel to threats in real-time.

The Foundation: Physical Perimeter Security Measures

Before deploying technology to monitor and detect, the first question a security manager should ask is: Can we physically stop the threat before it starts?

Physical perimeter protection starts with identifying the application needs of the site:

• Is the perimeter fully enclosed or semi-public?

• Are there critical infrastructure elements near the edge of the property?

• Is vehicular access a concern—accidental or intentional?

• Do we need to support pedestrian flow while still preventing unauthorized entry?

Common Physical Security Tools

1. Fencing and Gates

   • Anti-climb fencing, welded mesh panels, and barbed or concertina wire top-offs are standard in securing sensitive areas.

   • Gates must be reinforced and integrated into access control systems to prevent tailgating or forced entry.

2. Bollards and Vehicle Barriers

   • Fixed bollards (concrete or steel) are ideal for high-traffic pedestrian areas where vehicle entry must be prevented at all times.

   • Retractable or automatic bollards allow for operational flexibility at event venues, loading docks, or emergency access points.

   • In high-security applications, crash-rated barriers that meet ASTM or DOS standards should be specified.

3. Natural Barriers and CPTED (Crime Prevention Through Environmental Design)

   • Berms, boulders, dense landscaping, and water features can subtly discourage access while preserving architectural aesthetics.

   • CPTED principles guide placement of lighting, vegetation, and lines of sight to reduce hiding spots and increase natural surveillance.

Detect to Deter: Introduction to PIDS Technologies

While physical measures can prevent or delay intrusions, most organizations still need real-time detection of perimeter breaches to alert security teams and initiate response protocols. That’s where Perimeter Intrusion Detection Systems (PIDS), like those available from Southwest Microwave, come into play.

PIDS refers to a range of technologies used to detect unauthorized intrusions at or near the facility’s boundary, often before the intruder gets close to a building or asset.

Here’s a breakdown of the most commonly deployed PIDS technologies and their best-fit applications.

Fence-Mounted Sensors

Best For: Facilities with robust perimeter fencing that want to add detection capability without major infrastructure changes.

These systems detect vibrations or flexing in the fence caused by cutting, climbing, or lifting. Modern versions use accelerometers and signal processing algorithms to reduce false alarms caused by wind or wildlife.

• Pros: Cost-effective, easily retrofitted to existing fences, zone-based detection.

• Cons: Less effective if fencing is not well-maintained or properly tensioned.

Real-world example: A data center installs a fence-mounted sensor system to detect cut-through or climb-over attempts, alerting security before an intruder reaches the building’s wall.

Buried Cable Sensors

Best For: Facilities that require discreet or layered detection or want to maintain unobstructed aesthetics.

These systems use electromagnetic or microphonic cables buried underground to detect movement or pressure. When an intruder walks or drives over the protected zone, the system triggers an alert.

• Pros: Invisible, immune to weather, no obstruction to foot traffic.

• Cons: Installation costs can be high; limited pinpoint accuracy.

Use Case: A corporate campus installs buried sensors along landscaped pathways to detect off-hours intrusions without compromising the visual appeal of the grounds.

Infrared and Microwave Beam Sensors

Best For: Clear lines of sight such as open fields, rooftop edges, or alleyways between buildings.

These active sensors send a beam from a transmitter to a receiver. If the beam is broken, the system sounds an alert.

• Pros: Good for defined boundaries; adjustable range and sensitivity.

• Cons: False alarms possible due to birds, foliage, or debris; needs line-of-sight maintenance.

Use Case: A pharmaceutical facility protects rear delivery zones with break-beam sensors, alerting guards to any night-time movement in these critical but often unsupervised areas.

Video Analytics for Perimeter Monitoring

Best For: Locations already deploying video surveillance systems with well-placed perimeter cameras.

Modern IP cameras equipped with AI-based analytics can detect:

• Line-crossing events

• Human or vehicle presence

• Loitering

• Crowd formation

With IVA Pro from Bosch or similar platforms, video analytics can effectively act as a PIDS solution when calibrated properly.

• Pros: Dual-purpose (detection and visual verification), scalable, integrates into Bosch or other VMS.

• Cons: Dependent on lighting and weather unless thermal cameras are used.

Use Case: A logistics hub uses thermal cameras with analytics to detect perimeter movement during fog or low-light conditions, triggering alerts to their 24/7 security operations center.

Radar and LiDAR Systems

Best For: High-security installations requiring coverage over wide areas, often in combination with other systems.

Radar and LiDAR offer 3D detection, capable of tracking targets moving toward a perimeter—even differentiating between humans, animals, and vehicles.

• Pros: Works in all lighting and weather conditions, wide coverage.

• Cons: Higher cost, requires expertise for configuration.

Use Case: A utility substation employs radar sensors to detect motion across the facility’s wide-open grounds, cueing PTZ cameras to automatically track movement.

Designing for Detection: Integration is Key

Regardless of the technologies deployed, integration is critical. PIDS should communicate directly with:

• Access control systems (to lock down nearby doors automatically)

• Video management systems (VMS) (for instant visual verification)

• Security operations centers (for real-time response coordination)

Modern systems offer open protocols and SDKs to streamline this integration and avoid siloed systems.

Too often, perimeter security is treated as an afterthought or is overly reliant on a single method—such as surveillance or fencing. In truth, a layered approach combining physical, electronic, and procedural controls is the best path forward.

As you evaluate or upgrade your facility’s perimeter strategy, start with a risk-based assessment that aligns protective measures to operational priorities, threat levels, and compliance requirements. Then layer in technologies that offer early detection and situational awareness.

Remember, the goal is not just to respond to breaches—it’s to deter and delay before a threat ever reaches your people or your assets.
